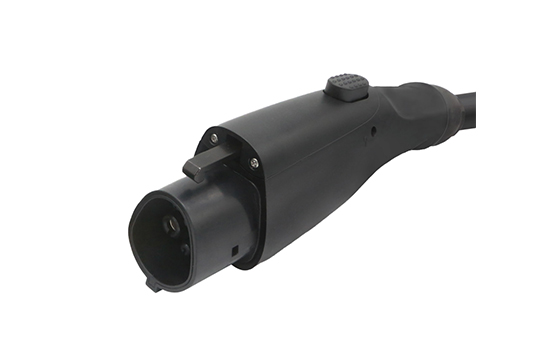

Three Phase 22kW 32A Type 2 to Type 2 EV Charging Cable

Name: Three Phase 22kW 32A Type 2 to Type 2 EV Charging Cable
Brand: XTECK NEW ENERGY TECHNOLOGY CO., LTD.
Price: 200 USD
Availability: InStock

As a leading EV charging station manufacturer, we are proud to introduce our high-performance Type 2 to Type 2 EV Charging Cable – the ultimate solution for seamless, fast, and reliable electric vehicle charging. Designed to meet the needs of modern EV drivers, our cables are engineered for compatibility, durability, and safety, making them the perfect choice for both residential and commercial use.

Contact Us

Specifications of Three Phase 22kW 32A Type 2 to Type 2 EV Charging Cable

Technical Information
Type	Type 2
Rated Current	16A/32A
Rated Voltage	230V / 400V AC
Rated Output Current	16A single-phase / 16A three-phase 32A single-phase / 32A three-phase
Standard	EN 62196-2: 2017
Rated Frequency	50Hz
Protection Grade	IP65 (coupled state)
Conductor Material	Copper alloy, silver plated
Shell Material	PC ( UL94 V0)
Working Temperature	-30℃~+50℃
Storage Temperature	-30°C to 85°C
Insulation Resistance	＞10MΩ
Terminal Heats Up	＜50K
Pressure Resistance	＞2000VAC
Mechanical Life	No-load plugging＞＞10000 times
Altitude	＜2000M
Cable Length	5m, 7m, 10m or customized
Certificates	CE RoHS TUV (EN 62196-2: 2017)
