60kW 80kW 120kW 160kW 180kW 240kW CCS1 CCS2 GBT CHAdeMo DC EV Charging Station

Name: 60kW 80kW 120kW 160kW 180kW 240kW CCS1 CCS2 GBT CHAdeMo DC EV Charging Station
Brand: XTECK NEW ENERGY TECHNOLOGY CO., LTD.
Price: 200 USD
Availability: InStock

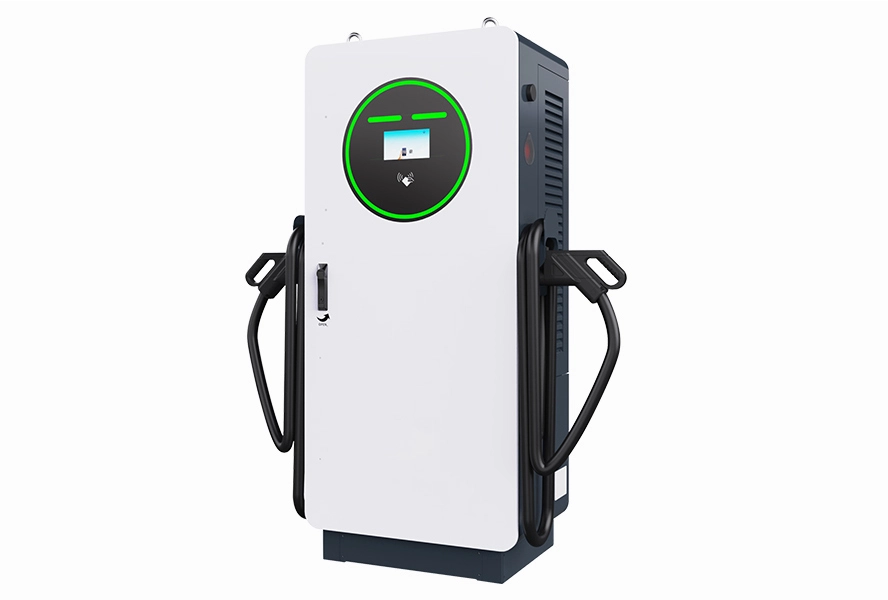

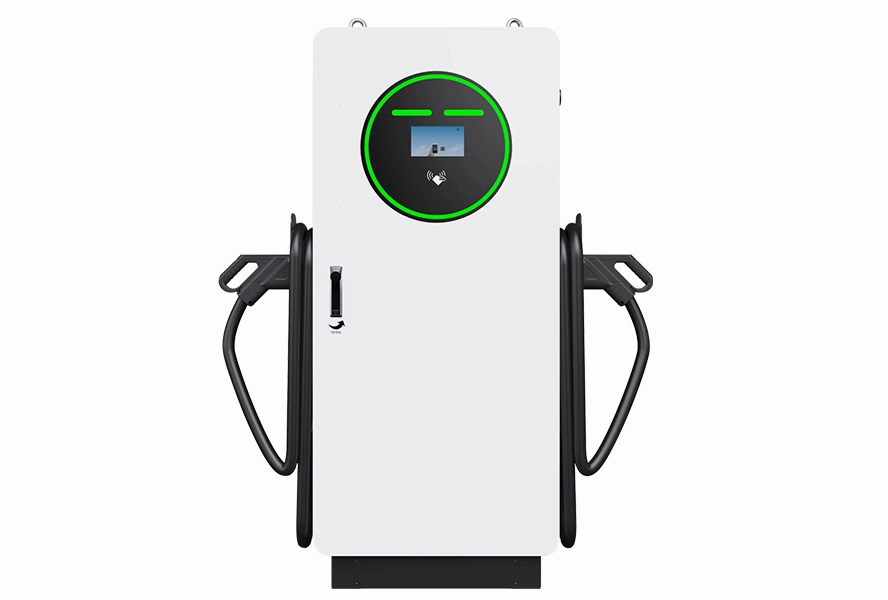

The Electric Vehicle Super DC Charging Station offers a wide range of power options, including 60 kW, 120 kW, 180 kW, 240 kW, 300 kW, and 360 kW. Designed for fast, reliable, and efficient charging, this floor-mounted unit supports multiple charging standards, including GBT, CCS, and CHAdeMO, making it versatile and compatible with a variety of electric vehicles. Whether for commercial, public, or fleet use, the charging station is built to provide rapid charge times, ensuring vehicles are back on the road quickly and efficiently. Ideal for high-traffic locations, it boasts robust safety features, ease of use, and a durable design suitable for all weather conditions.

Contact Us

Specification of 60kW 80kW 120kW 160kW 180kW 240kW CCS1 CCS2 GBT CHAdeMo DC EV Charging Station

Dual charger
Input	Rated Power	60kW	80kW	120kW	160kW	180kW	240kW
	Voltage Range	380±15% VAC	380±15% VAC	380±15% VAC	380±15% VAC	380±15% VAC	380±15% VAC
	Frequency	50/60HZ±3%HZ
Output	Output Voltage	200Vdc~1000Vdc
	Maximum Current	250A	250A	250A	250A	250A	250A
User Interface	Charge Connector	CCS1/CCS2/CHAdeMO
	Cable Length	5M
	Enclosure	Galvanized steel
	LED Indicator	Green / Yellow / Red
	LCD Display	7"color touch screen
	RFID Reader	Mifare ISO / IEC 14443 A
	Start Mode	Plug & Pay / RFID card / App
	Emergency Stop	Yes
	Interface Language	English / Chinese
	Auxiliary Power	12Vdc
Communication	WIFI	Optional
	Ethernet	Yes
	3G/4G	Yes
	0CPP	OCPP 1.6Json (OCPP 2.0 optional)
safety	RCD	Type A
	Ingress Protection	IP54

	Certification	CE、TUV、KTC
	Waranty	2 years
Enwironment	Installation	Floor-stand
	Cooling Method	Fan cooling

	Work Temperature	-25℃ +55℃
	Work Humidity	5%-95%
	Work Altitude	<2000m
Package	Product Dimensions	700mm500mm1600mm			700mm500mm1850mm

Functionality Introduction of 60kW 80kW 120kW 160kW 180kW 240kW CCS1 CCS2 GBT CHAdeMo DC EV Charging Station

Features and Functions

High Compatibility: Support APP. RFID Card, POS, Alipay payment method
Safe and Reliable: CE certified, with an IP54 protection rating and a 2-year quality warranty.
Multiple Charging Connector Configuration: CS2+GBT; CCS2+CHAdeMO; CCS1+CCS2; CCS1+CCS1; CCS2+CCS2; CCS2+GBT; CCS1+GBT..

Product Descriptions

Charging Power: 60 kW 120 kW 180 kW 240 kW 300 kW 360kW electric vehicle super dc charging station floor mounted GBT CCS CHAdeMO fast EV charger
Various protection functions: ensure safe charging in rainy and snowy weather, with waterproof and weather-resistant design to prevent electrical faults. Built to withstand harsh conditions, it guarantees reliable charging in all environments.
Optional networking mode: support wifi/Ethmet/3G/4G/Bluetooth/OCPP 1.6 json(OCPP 2.0 optional) control device,Friendly interface and comfortable LCD screen
Various charging methods: plug& play/ RFID card/APP
