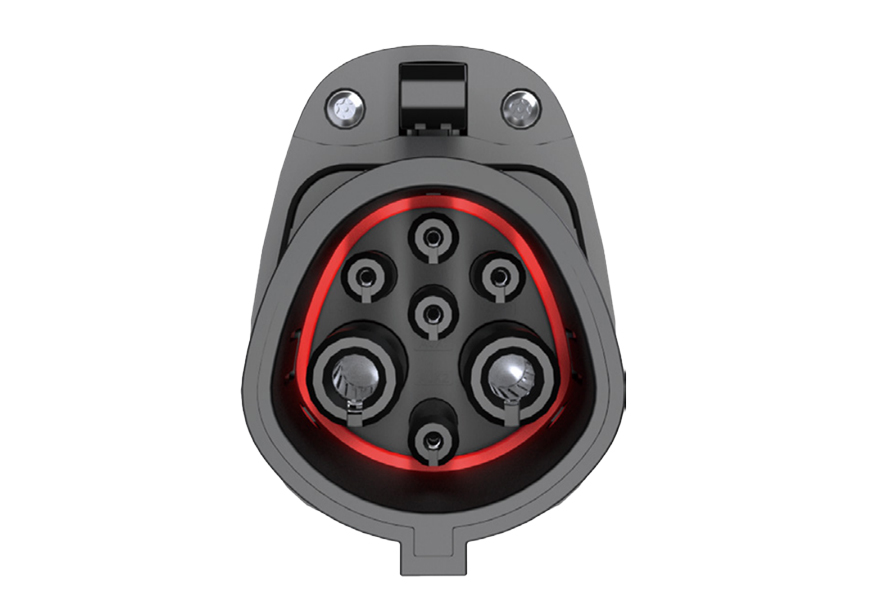

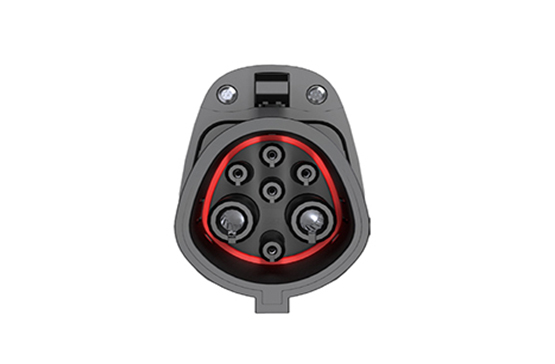

Dash-6 Charging Cable Manufacturer Waterproof IEC 62196 Type 6 Plug

Name: Dash-6 Charging Cable Manufacturer Waterproof IEC 62196 Type 6 Plug
Brand: XTECK NEW ENERGY TECHNOLOGY CO., LTD.
Price: 200 USD
Availability: InStock

Professional IEC 62196-6 EV Charging Guns Manufacturer - We specialize in high-quality, internationally certified charging solutions featuring dual power options (16A/3.7kW & 32A/7.4kW), robust IP54/IP67 waterproof construction for all-weather durability, and wide applications including home charging stations, commercial parking lots, and fleet charging solutions, with complete customization services offering tailored cable lengths (2-10m) and optional smart features like RFID and electronic locking systems.

Contact Us

Specifications of Dash-6 Charging Cable Manufacturer Waterproof IEC 62196 Type 6 Plug

Technical Information
Specification
Standard	IEC 62196-6 (Dash-6)
Charging Type	AC Charging (Single-Phase)
Rated Voltage	250V AC
Rated Current	16A / 32A (common variants)
Power Output	3.7kW (16A) / 7.4kW (32A)
Frequency	50/60Hz
Insulation Resistance	≥10MΩ (500V DC)
Withstand Voltage	2000V AC (1 minute)
Mechanical Specifications
Number of Pins	5 (L/N/PE + 2 communication pins)
Housing Material	High-grade thermoplastic (UL94 V-0)
Mating Cycles	≥10,000 insertions
Environmental Ratings
IP Rating	IP54 (standard) / IP67 (optional)
Operating Temperature	-30°C to +50°C
Storage Temperature	-40°C to +85°C
Relative Humidity	5% to 95% (non-condensing)
Altitude	≤2000m above sea level

Functionality Introduction of Dash-6 Charging Cable Manufacturer Waterproof IEC 62196 Type 6 Plug

Specification

Rated Voltage： 250V AC (±10%)

Rated Current：16A / 32A (standard versions)

Maximum Power：3.7kW (16A) / 7.4kW (32A)

Frequency： 50/60Hz

Insulation Resistance: ≥10MΩ (500V DC)

Withstand Voltage: 2000V AC (1 minute)

Standard Compliance：IEC 62196-6 (Dash-6)

Charging Mode：AC Single-Phase Charging

Application： Electric Vehicle Supply Equipment (EVSE)

Interface Type： Vehicle Connector (Male)
